Mini Thermoelectric Air Conditioner , Thermoelectric Air Conditioning System

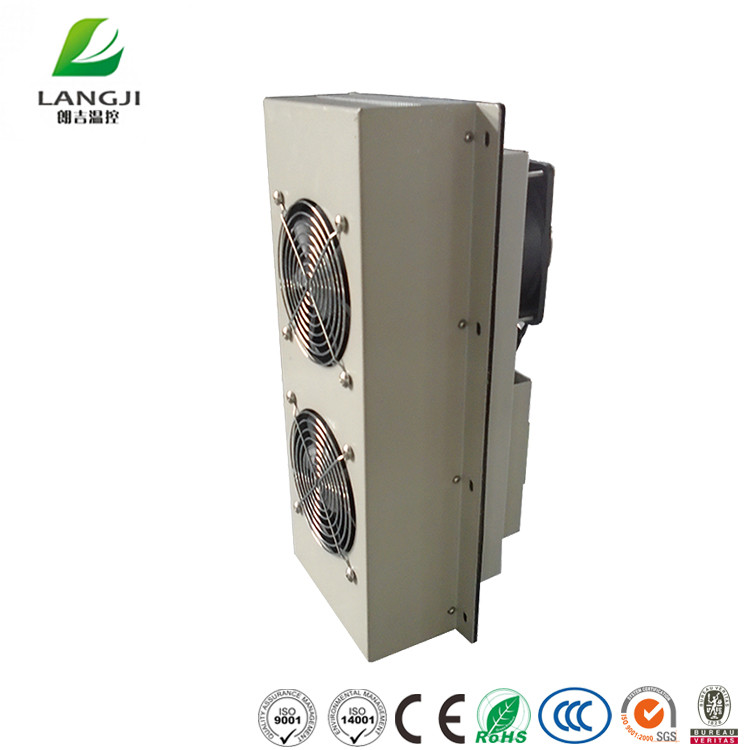

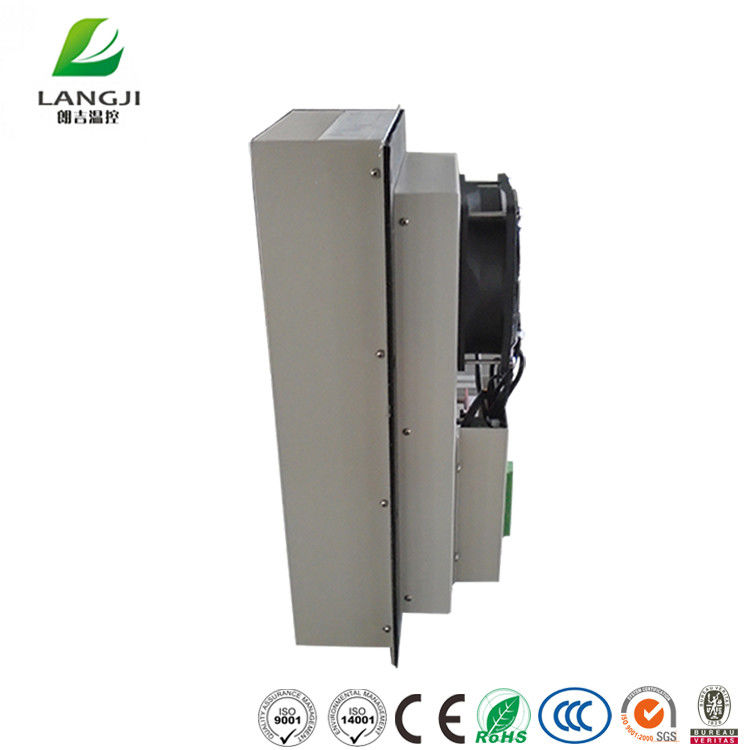

Mini light weight Thermoelectric Air Conditioner

Product Introduction

1. Description of outdoor telecom enclosure

Thermoelectric Air Conditioner is a kind of cooling equipment consists of Peltiel material. The inner sealed circuit is composed of the two different metal leads, X and Y. When it is on power, heat on cool end is transferred to hot end, which leads to the temperature drop at cool end and temperature rise at hot end. The switch between hot end and cool end can be completed by changing electrode.

2. Data Sheet

3. Product Advantage

• It adopts Peltiel material to realize electronic cooling. Mini-shape and light.
• Without compressor and Freon. Environment-friendly, no vibration, no leak.
• Using Environment-friendly materials, which meet RoHs requirements.
• No limitation about installation, it can be applied to many occasions.
• Normal working ambient temperature is -20℃ to + 50℃.
• Using high density and thermal insulation foam to fill the cool end and hot end of the cooling equipment.
• The temperature of Overheat protector of radiator at hot end is set at +75℃±5℃.
• Applicable to the sealed, vibrating, and rotated occasions where compressor cannot work.

4. Application

• Outdoor telecom cabinet
• Outdoor battery cabinet
• Electrical cabinet
• Industrial control cabinet

5. Drawing

Product Application

Outdoor Telecommunication Cabinet is mainly used for wireless communication base station, including the new generation of 4G system, communication network/network integrated services, access/transmission switching station, emergency communication/transmission, etc.
