| Place of Origin: | China suzhou |
|---|---|
| Brand Name: | Langji |
| Certification: | CE/ISO14001/ISO9001/3C/SGS |
| Model Number: | LAJE-OBC2100 |
| Minimum Order Quantity: | 1 |
| Price: | $ 300-1000 set |
| Packaging Details: | wooden pallet+Wooden case |
| Delivery Time: | 10-15 working days |
| Payment Terms: | Western Union |
| Supply Ability: | 100000 sets per Year |
| Protection Level: | IP55 / IP65/NEMA | Material: | Galvanized Steel |
|---|---|---|---|
| External Size: | 900mm*1150mm*2100mm(W*D*H) | Color: | RAL7035 GREY |
| Application: | Telecommunication,base Station,Electronic Ect,Outdoor Electronic Equipment,FTTX Network/Telecom | Cooling System: | 600W DC Compressed Air Conditioner |
| Warranty: | 1 Year | Surface: | Plating |
| Surface Finish: | Powder Coating | Type: | Outdoor Cabinet |
| Highlight: | Steel SGS Outdoor Battery Cabinets,SGS Outdoor Battery Cabinet,2.1m telecom outdoor cabinet SGS |
||

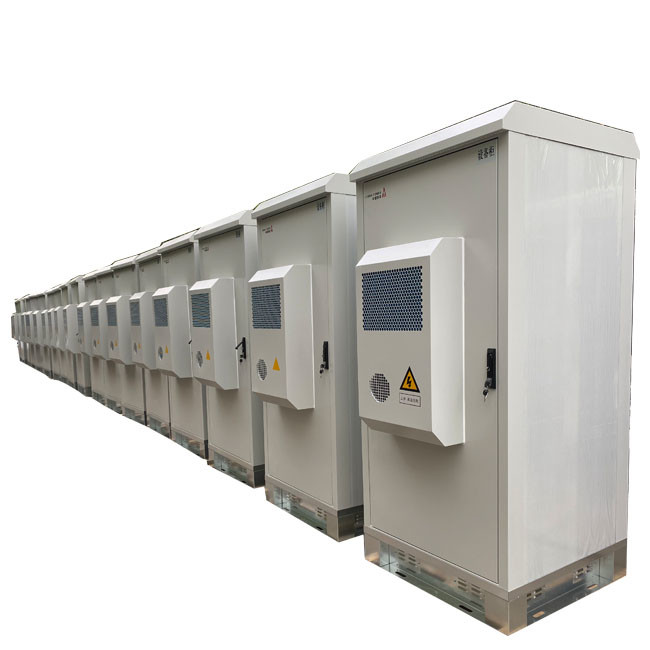

Waterproof 2100mm Power Supply Telecom Outdoor Battery Cabinet
The Outdoor Battery Cabinet works as a small Outdoor Base Station Cabinet. It is mainly used in wireless communication base station, such as 3G system, communication or network integrated service, access or transmission switching station, emergency communication or transmission, etc.
1. Technical Data Sheet
1.1 Structure
External Dimension(H*W*D) : Standard 900mm*1150mm*2100mm or any customized size
1.2 Material:Materials are Galvanization plate with 45mm thickness EPS insulation
1.3 Layout :4 Layers battery compartment
1.4 Door :two doors, 4 point security lock outdoor cabinet (support padlock)
1.5 Cable enter method :Bottom φ50*5 or customer requirement.
1.6 Temperature Control Cooling :600W 48VDC air conditioner
1.7 way of communication:RS485
1.8 working temperature:-40℃~+55℃
2. Available dimension and material
Width available:600mm,650mm,700mm,750mm,800mm,850mm,900mm or any customized size
Depth available:600mm,650mm,700mm,750mm,800mm,850mm,900mm,950mm,1000mm or any customized size
Height: 1000mm.1400mm 1600mm 2000mm etc (based on customers requirements)
Material available: Galvanized iron/Aluminum/Stainless steel/Cold-rolled steel etc(based on customers requirements)
|
Accessory List(options)
|
||
| No. | Item | Specifications |
| 1 | Fan | DC48V, START WORK AT 35°C |
| 2 | Power Distribution (PDU) | GRADE B LIGHTNING PROOF AC INPUT: 63A/2P *1; AC OUTPUT: 16A/1P*4; DC OUTPUT: 16A/1P*4 or customer requirement |
| 3 | Environment Monitoring Unit | 48VDCCommunication port: RS485, TCP/IP, SNMP optional |
| 4 | Door Sensor | Monitor door open status inside cabinet and provide real time alarm. |
| 5 | Water Sensor | Monitor water status inside cabinet and provide real time alarm. |
| 6 | Tilt & Shock Sensor | Monitor shock status inside cabinet and provide real time alarm. |
| 7 | Temperature & Humidity Sensor | Monitor temperature and humidity inside cabinet and provide real time alarm. |
| 8 | Smoke Sensor | Monitor smoke status inside cabinet and provide real time alarm. |
| 9 | Ground Bar | Resistance value: 0.021Ω |
| 10 | Built-in power supply | 150A/200A/300A |
| 11 | Packaging | Wooden case/Export pallet |
| Cooling System(Optional) | ||
| No. | Item | Specifications |
| 1 | Air Conditioner | AC220V/DC48V, Cooling capacity 300w, 400w, 600w, 800w, 1000w, 1200w, 1500w, 2000w, 2500w, 3000w, 3500w, 4000w; AC380V,5000w |
| 2 | Heat Exchanger | AC220V/DC48V, Heat transfer 80w/k, 100w/k, 120w/k, 150w/k, 200w/k |
| 3 | Thermoelectric Cooler (TEC) | DC48V, Cooling capacity 200w, 300w |
| 4 | Fan | DC48V |
3. Detailed Picture
4. Cooing system
600W 48VDC air conditioner installed on the front door
 |
|
